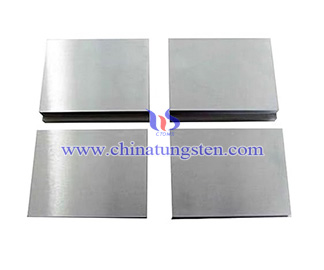

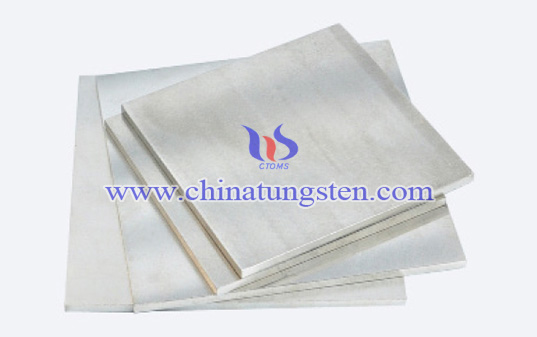

Silver Tungsten Carbide Sheet

The silver tungsten carbide sheet is a planar composite material produced via powder metallurgy, composed primarily of tungsten carbide (WC) for hardness and wear resistance, and silver (Ag) for electrical and thermal conductivity. It is specially designed for applications requiring a flat, wear-resistant, and conductive surface, such as electrical contacts, arc-resistant plates, switchgear components, and thermal dissipation panels.

This material exhibits outstanding arc erosion resistance, thermal stability, and uniform electrical conductivity across its surface, making it ideal for applications where surface uniformity, contact reliability, and structural integrity are critical.

Application Areas:
1.High-voltage switchgear contacts and arc plates
2.Vacuum relays, electrical contact modules
3.Welding equipment heat spreaders or base contacts
4.Anti-wear faceplates, conductive sliding interfaces, replaceable terminal modules
5.Special-purpose electrodes, thermal control layers, aerospace/defense electric-resistant components

Typical Physical Properties (30–35% Ag content):

Density	12.8 – 14.3	g/cm³	Varies with silver ratio
Hardness	250 – 550	HV	High surface hardness
Electrical Conductivity	12 – 30	%IACS	Good conductivity for stable contact behavior
Electrical Resistivity	3.0 – 8.5	μΩ·cm	Low resistance ideal for consistent flow
Thermal Conductivity	80 – 140	W/m·K	Efficient thermal dissipation in sheet form
Flexural Strength	600 – 1000	MPa	Withstands high mechanical loads
Operating Temp Range	-50 – 800	℃	Reliable in wide temperature range
Density	12.8 – 14.3	g/cm³	Varies with silver ratio
